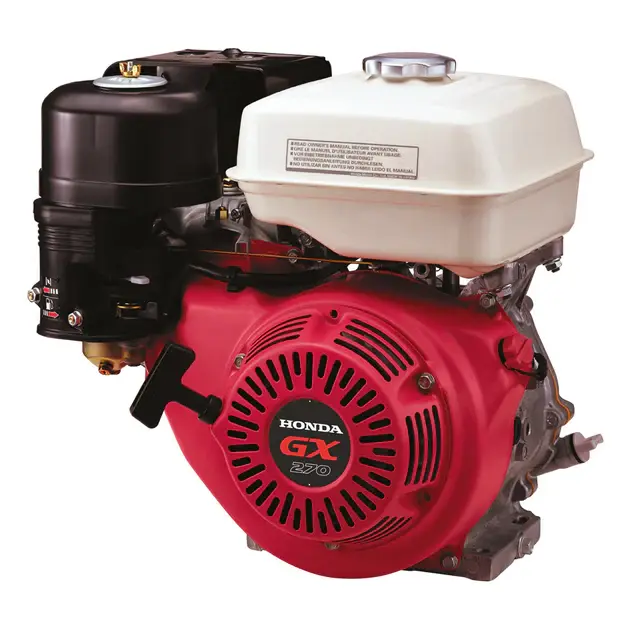

HONDA ENGINE GX270PA (9HP)
Quality and performance come standard.
The GX270 features more power, quieter performance, lower fuel consumption and lower emissions than the previous version. With new features and better performance, the new GX engines establish themselves yet again as the best engines in the business.
){kind=link}
Techincal Sheet
Crankshaft (type): Horizontal
Quantity: 1.0
Engine Series: GX Series
Family: HONDA Engines
Brands: HONDA
Engine (HP): 9
Bore X Stroke: 77 x 58 mm (3 x 2,3 po)
Oil Capacity: 1.1 L (0.97 qt (Imp), 1.16 US qt)
Fuel Tank Capacity: 5,3 L (1,2 gal CA, 1,4 gal US)
Fuel: Unleaded gasoline with a pump octane rating of 86 or higher
Carburetor: Horizontal type, butterfly type
Net Torque: GCALK : 17,7 Nm (13,1 lb-pi) @ 2 500 tr/minGCBGT : 19,1 Nm (14,1 lb-pi) @2 500 tr/min
PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
Net Power Output: GCALK : 6,0 kW (8,0 hp) @ 3 600 tr/minGCBGT : 6,3 kW (8,4 hp) @ 3 600 tr/min
Governor System: Centrifugal mechanical
Ignition System: GCALK : Transistorized magnetoGCBGT : C.D.I. (Capacitor discharge ignition) type magneto ignition
Lubrication System: Forced splash
Compression Ratio: GCALK : 8,2 : 1GCBGT : 8,5 : 1
Engine Type: Air-cooled 4-stroke overhead valve single cylinder
Displacement: 270 cm_ (16.5 po_)
PTO (type):Threaded
